Technical Specifications

Minimum/Maximum working temperature: -10 °C / 120 °C (14 °F / 248 °F). Minimum/Maximum working pressure: 0.2 / 10.0 bar (3 / 145 Psi). Suitable for addition of glycol-based anti-freeze up to 50%. In accordance with ANSI/ASME B1.20.1. Application: 97975 and 97977 only suitable for hydronic systems. 97976 only suitable for potable water.

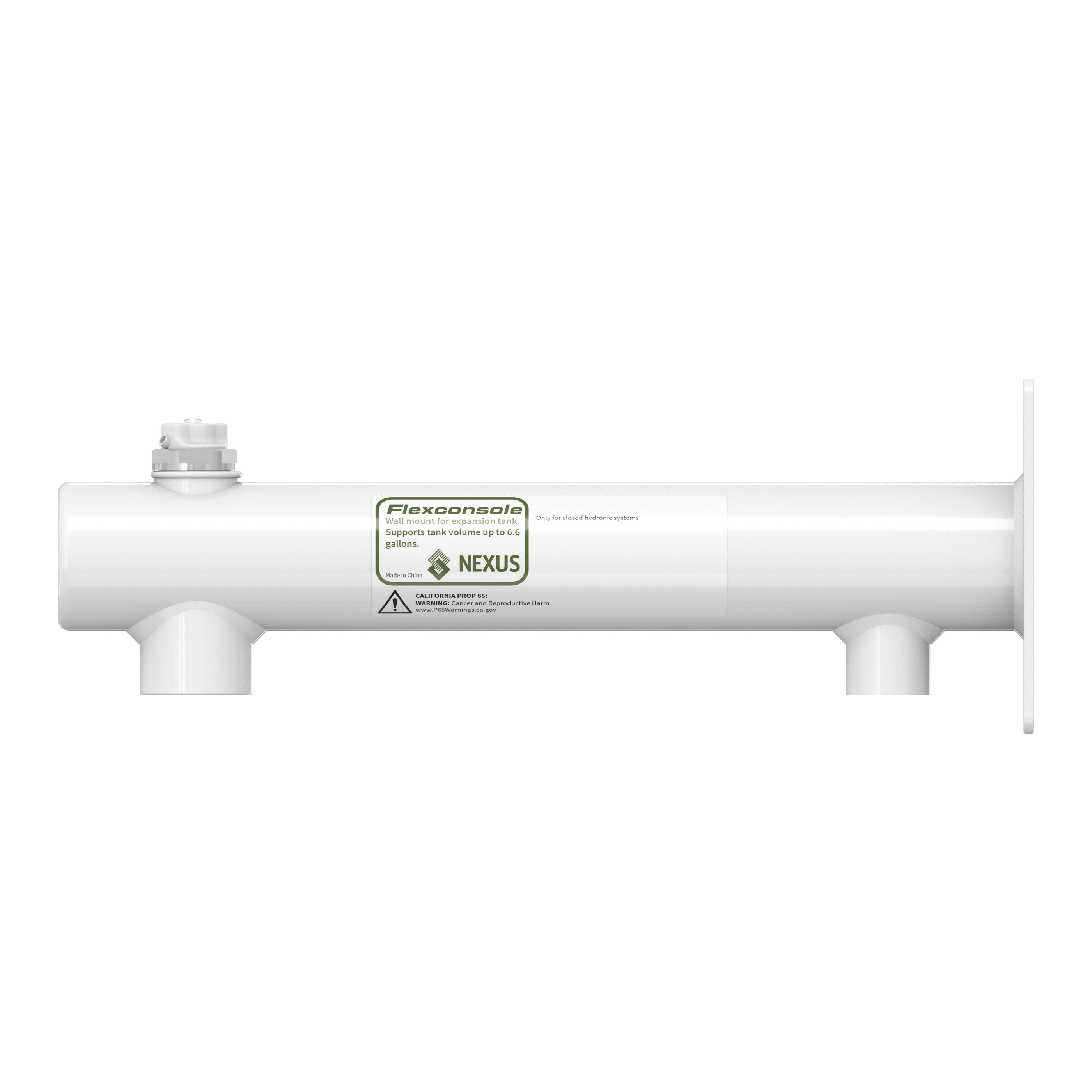

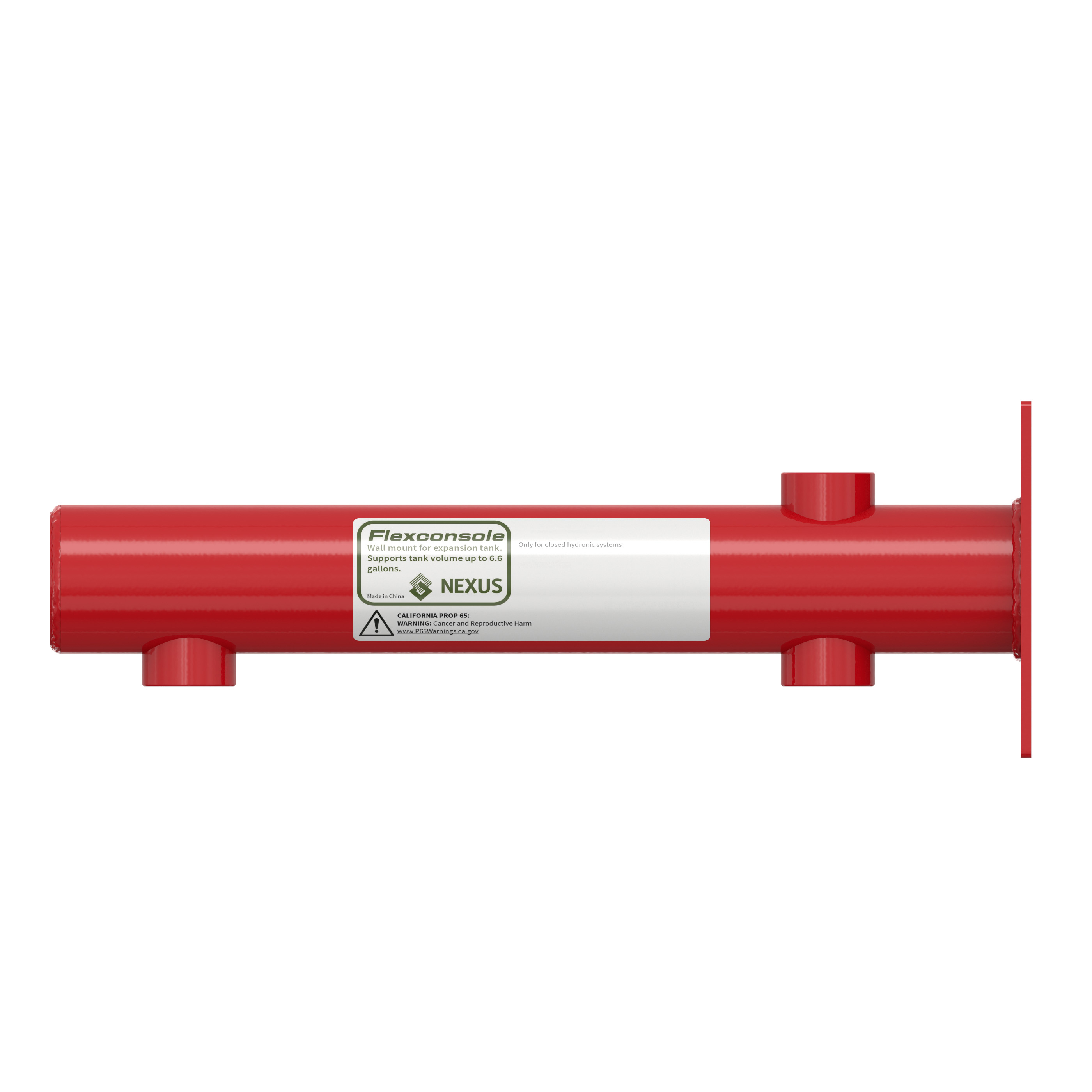

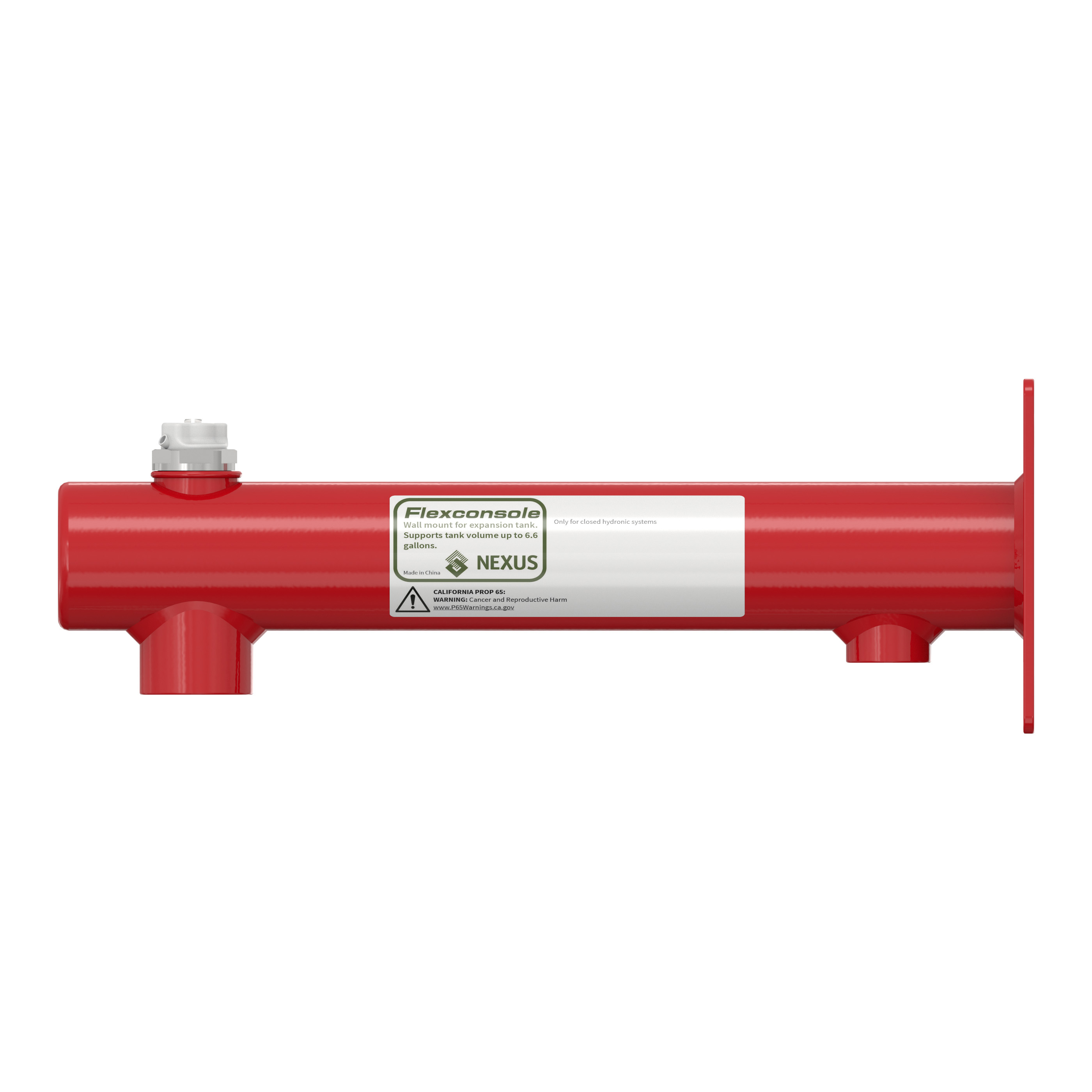

Flexconsole NPT

For mounting Flexcon expansion vessels (2 - 25 litres) to a wall.

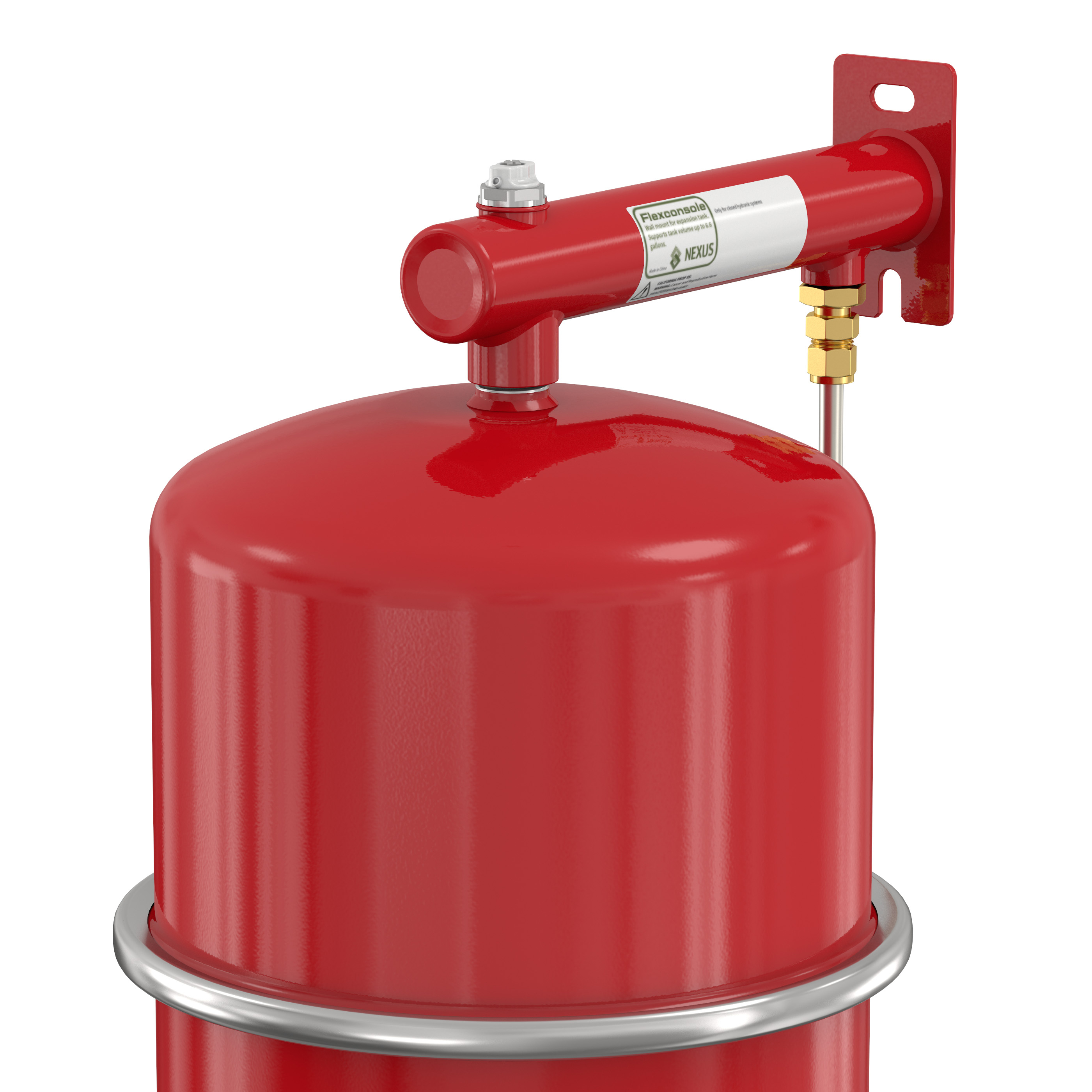

With the Flexconsole the Flexcon vessel is set up vertically fitted to the water connection with the water nipple fitted on connection B of the console and the expansion pipe fitted to connection A.

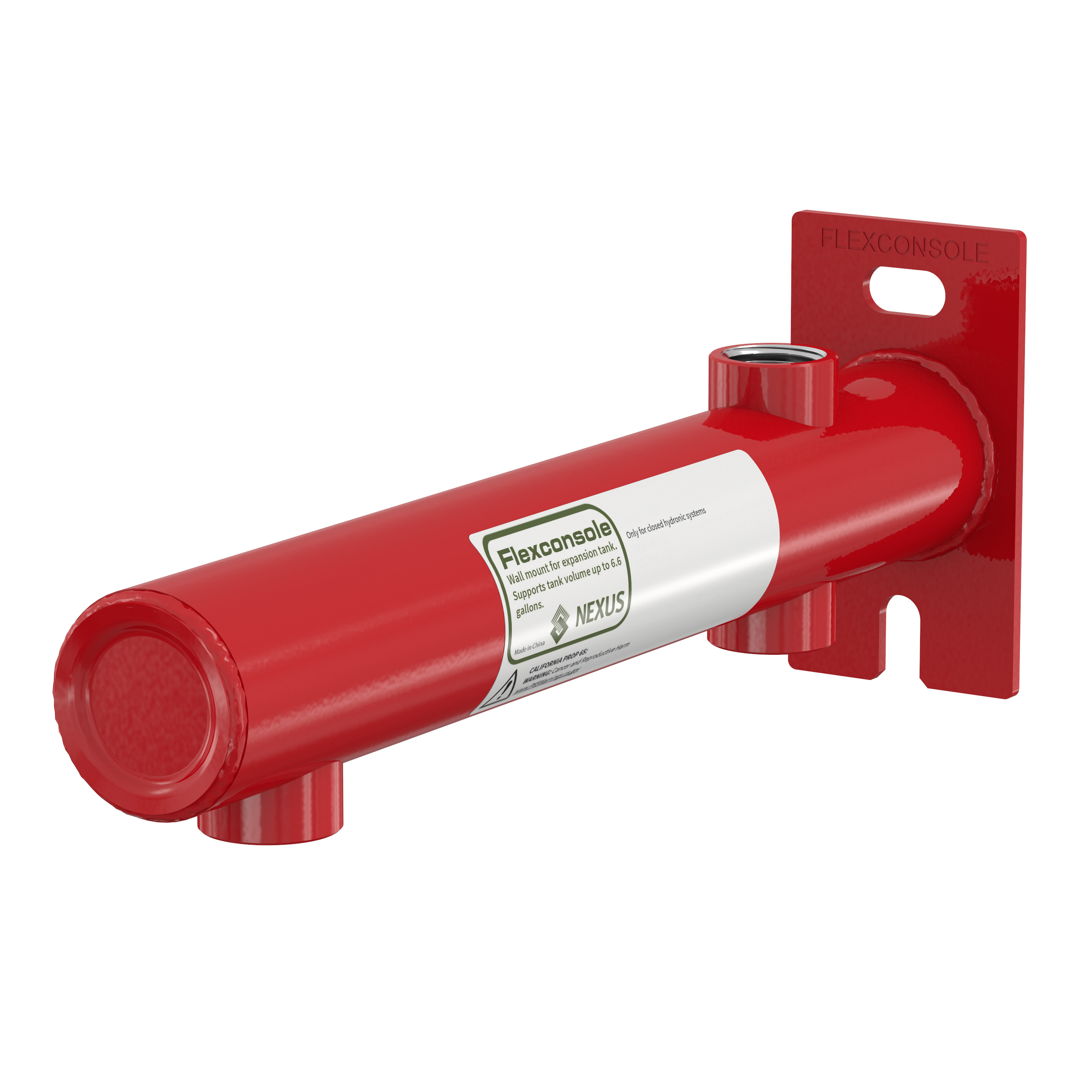

Equipped with a wall plate with two slots for accurate wall mounting.

Show more imagesShow less images

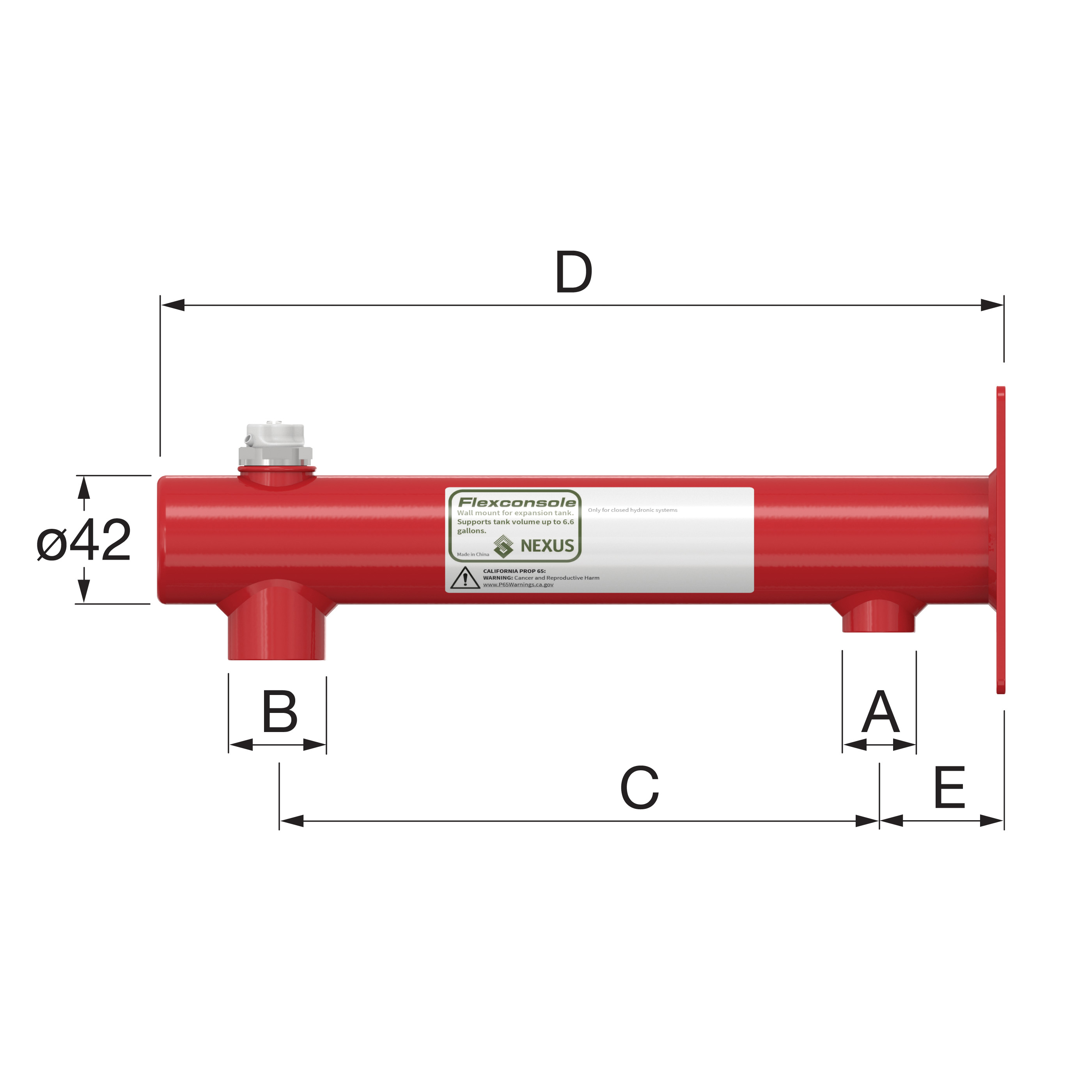

Type	Connection		Dimensions			Order Code
Type	A	B	C ["]	D ["]	E ["]	Order Code
Flexconsole ¹⁄2 NPT x ¹⁄2 NPT	¹⁄2" NPT	¹⁄2" NPT	7.67	10.83	1.61	97975
Flexconsole ³⁄4 NPT x ¹⁄2 NPT - SST	¹⁄2" NPT	³⁄4" NPT	7.67	10.83	1.61	97976
